Circlelord Zig Zag Template Instructions


Toll Free 1-866-510-6060





Parts List
3 sections template for King,
2 sections for Queen,
Pin Plate,
bag of plastic blocks

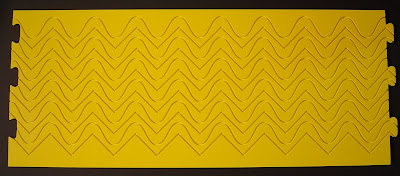

Center section

Bargello quilted using waves ribbons
with quilt mounted sideways


The King Zig Zag template has 2 ends sections and one center section. Each end section has 20 holes which are used to move the template back and forth by 1/4 inch to make several patterns of Zig Zags and Waves. Zig Zag patterns are in Section 2 and Waves are in Section 3. After you have set the template up with the pin plate
taped under the left corner, you will lift and slide the template back and forth to make the pattern. Set up instructions are below.

When using ZZ lines, lay all three sections of the template on the table, so that the ZZ line is to the back of the table (closest to you). Center the template as required for the top being quilted - just as with a paper panto. When using the Waves, position it so that the waves line is at the back. Do not use rubber mat when using the pin plate. If you are just using the lines, or want to shift the template without the pin plate, you can put mat underneath for the entire length, for the greatest stability. Tape the corners to stop accidental shifting when not using the pin plate,
or the plastic edge blocks.

Template on table before using pin plate and plastic blocks

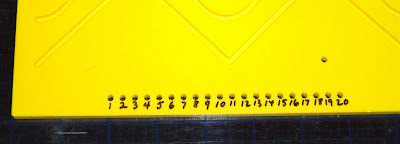

You will, usually, use the holes in the lower left corner of the template. Number the holes with a Sharpie marker, as seen above. The hole above the row is a registration hole used for advancing the fabric. This hole is not to be numbered.

After centering the template, and marking the holes, place the pin plate below the left corner of the template with the pin in hole 11 or 12. Place a piece of painters tape over the end of the pin plate sticking out. Lift the Template off the pin plate and tape it down on all four sides , as shown below.

Here is the tape and Pin plate ( Newest pin plates is 6 inches, as above)

Operating Instructions.

Use the template the same as a panto. Instead of following the lines with the laser light, you will follow the grooves with the stylus. When you com to an edge, and have to change rows, you can stop and cut the thread, or stitch up to the next row, using the area that will be under the binding, or trimmed off later.
Withe the Zig Zag line, slow down at the corners. With the Waves, follow the groove, keeping the wave motion in mind.
There are registration holes for both the Zig Zag and Waves lines. To quilt, follow the Visulizer patterns in Sections 2 and 3.
When crosshatching, do all the passes on one row before moving on to the next row.


For some time, I have given simple instructions on how to use pieces of paint stir sticks and blue tape to hole the Circle Lord King templates on the longarm table. Here are some pictures and comments on this method. I, now, supply square plastic blocks with the template.
Here is a picture of the Zig Zag template on the back of the APQS Millenium using this method. The APQS machines are the most difficult to work with because there are no edge walls. It is best if you have a Patterngrid to help line up the template. When you have the template lined up, follow these instructions.

Place 4 blocks along the bottom of the template. First, put a piece of blue painter's tape across the center of the block. Then, put tape across the back, and press both down firmly, while making sure that the block and template are still squared to the table.

Plastic block and paint stir stick along edge of template

Tape across block

Block completely taped down

Top block taped down

Over all view of template on table with taped blocks

See Sections 2 and 3 for patterns
